PRL Plug ‘n Play Flex Fuel Kit | 2017-2021 Honda Civic Type-R FK8 & 2023+ Honda Civic Type-R(PRL-HCR-FF-WIFI)

2017-2021 Honda Civic Type-R FK8 & 2023+ Honda Civic Type-R FL5 Plug ‘n Play Flex Fuel Kit by PRL Motorsports

Due to rising gas prices and the push for alternative fuel sources, ethanol, derived primarily from corn, has become a common, cost-effective fuel choice. Ethanol has now found its way into most modern gas stations and the community now understands its list of benefits in comparison to gasoline, such as the fact ethanol burns cleaner, cooler and is more resistant to detonation. Because of these characteristics, ethanol is a cheap alternative to expensive race fuels like race gas and/or methanol, especially with high(er) compression factory turbocharged vehicles.

E85 = 85% Ethanol and 15% Gasoline whereas E30 = 30% Ethanol and 70% Gasoline and so-on.

What is Flex Fuel?

In a nutshell, “flex-fuel” allows an internal combustion engine to flexibly utilize one or more different fuels (usually gasoline blended with either ethanol or methanol fuel), and both fuels are stored in the same common fuel tank. Flex-Fuel systems utilize an ethanol content analyzer to determine the amount of ethanol in a fuel system and a converter to send this reading to the vehicle’s ECU to instantaneously adjust for varying fuel mixtures.

Our Plug ‘n Play Flex-Fuel Kit utilizes factory plugs/outputs under the hood for power and communication to the ECU, meaning no need for additional wiring, cutting, splicing or running wires through the firewall into the cabin! This kit supplies everything needed for a quick and easy installation. Please note that our kit does NOT utilize an ethanol content gauge, as we feel that this is unnecessary. Hondata offers Bluetooth capabilities which can be used to display ethanol content if desired. All components are ethanol compliant!

Features

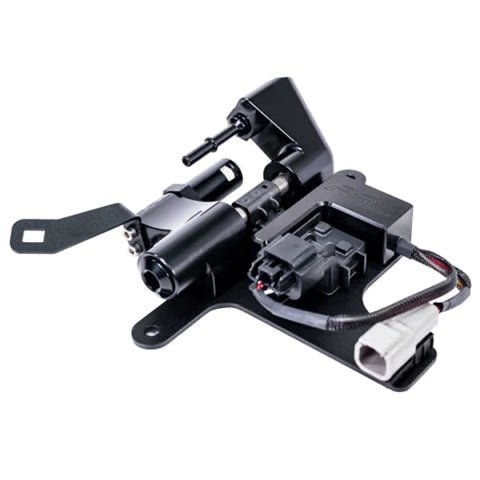

• Billet Aluminum Flex-Fuel Converter Case w/ Sealed & Potted Board
• Genuine GM Continental Ethanol Content Sensor

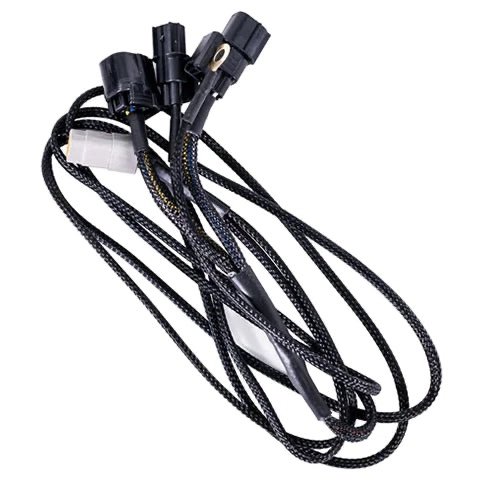

• Plug ‘N Play Braided Wiring Harness
• Stainless Mounting Bracket
• Gates Barricade High-Pressure Fuel Injection Hose
• EFI Quick Connect Fitting

Please Note

• No need for a wire tap or add-a-fuse!
• Flex Fuel Kit is compatible with Hondata
• Flex Fuel must be enabled through engine management system
• Flex Fuel Tune Required

Applications

• 2017 – 2021 Honda Civic Type-R (FK8)
• 2023+ Honda Civic Type-R (FL5)

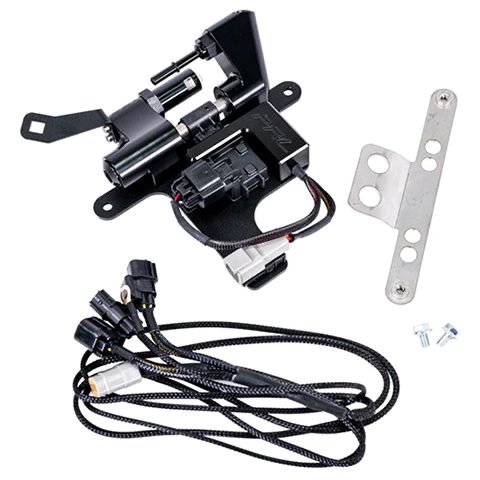

What’s In The Box?

• 1 – Flex-Fuel Converter Case w/ Sealed & Potted Board
• 1 – GM Continental Ethanol Content Sensor
• 1 – Plug ‘n Play Wiring Harness
• 1 – Mounting Bracket
• 1 – Gates Barricade High-Pressure Fuel Injection Hose
• 1 – EFI Quick Connect Fitting
• Stainless Hardware

References

• Installation Guide

Warranty

• Manufacturer Standard Warranty
